VF2000 RF Switch / DiFEM Test Solution

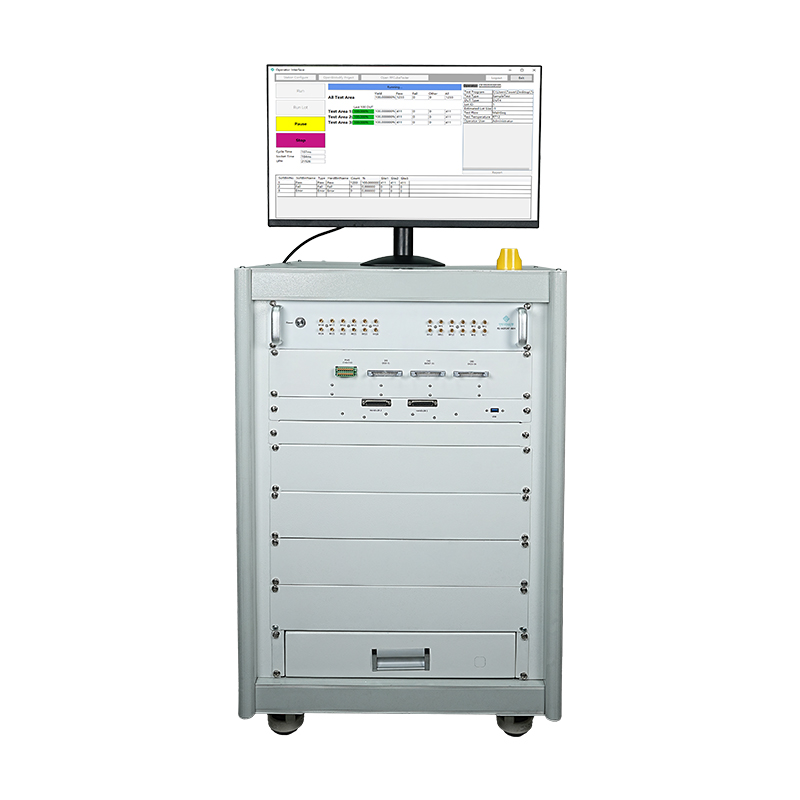

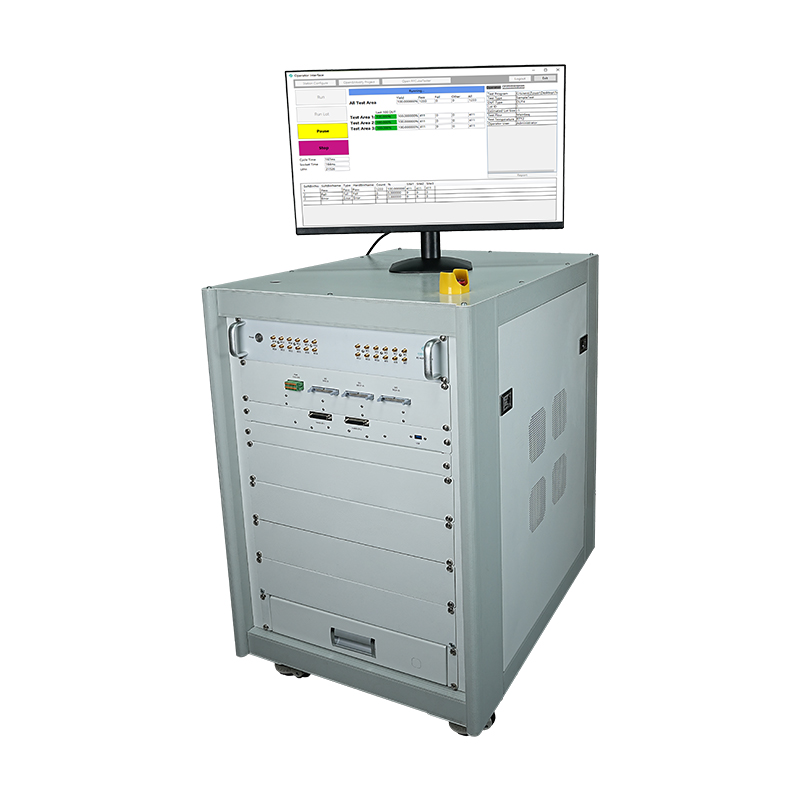

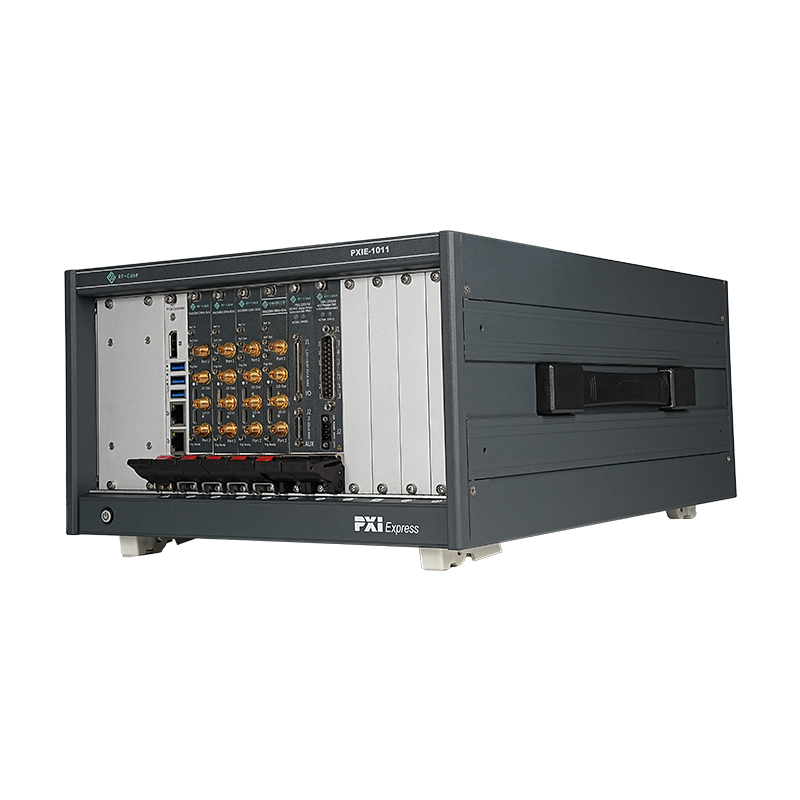

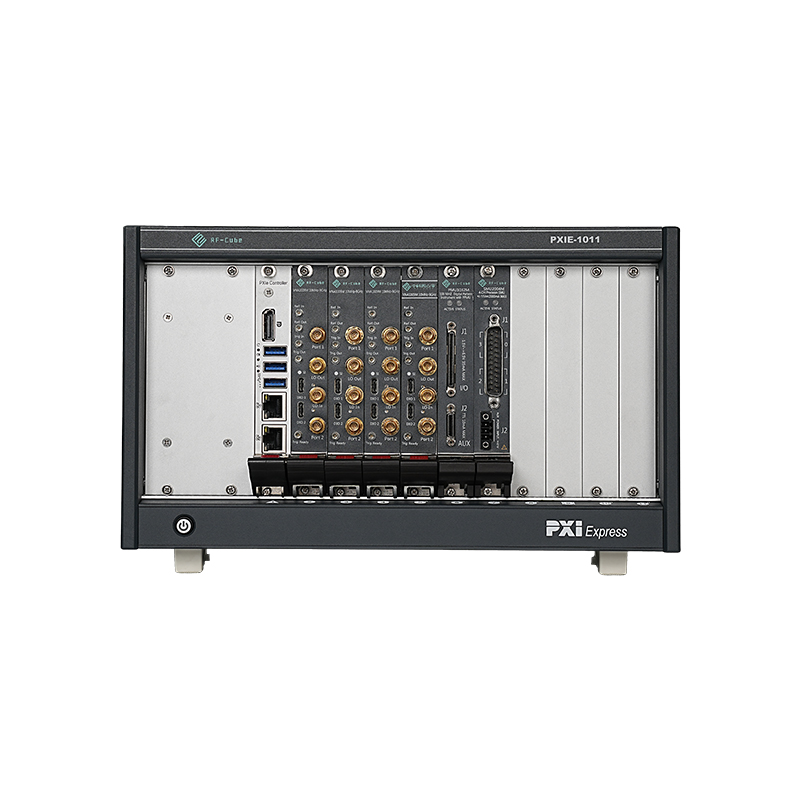

The RF-Cube VF2000 RF Switch/DiFEM Test Machine uses entirely self-developed PXIe vector network analyzer module, U2004,P1032, and RF Port Module port expansion components—designed as a test platform solution for high-volume, high-speed RF testing. The VF2000’s long-term stability has been rigorously tested; paired with probe stations and sorting machines, it enables CP and FT on large-scale production lines.
400-960-9313
Apply for trial/cons
Typical Parameters​

Key Features

• Multi-site testing support

• Multi-port testing

• Top-tier measurement speed

• Built-in common test template library

• Industry-exclusive lowest-cost switch time solution


RF Capabilities

• S-parameter measurement

• RF switch time measurement

• Multiple RF Port model expansions

• Frequency range options: 9GHz/22GHz/44GHz

• Supports standard SOLT, TRL calibration / electronic calibration kits—enabling impedance matching / port extension / fixture de-embedding functions


Digital/Power Capabilities

• Standard 4-channel SMU, supporting -11V ~ +11V / -2A ~ +2A

• Standard 32-channel Pattern/PPMU, -1.5V ~ 6.5V / ±30mA; up to 100Mbps pattern editing and measurement, supporting MIPI/SPI/I2C, etc.

• Standard 32-channel IO control
