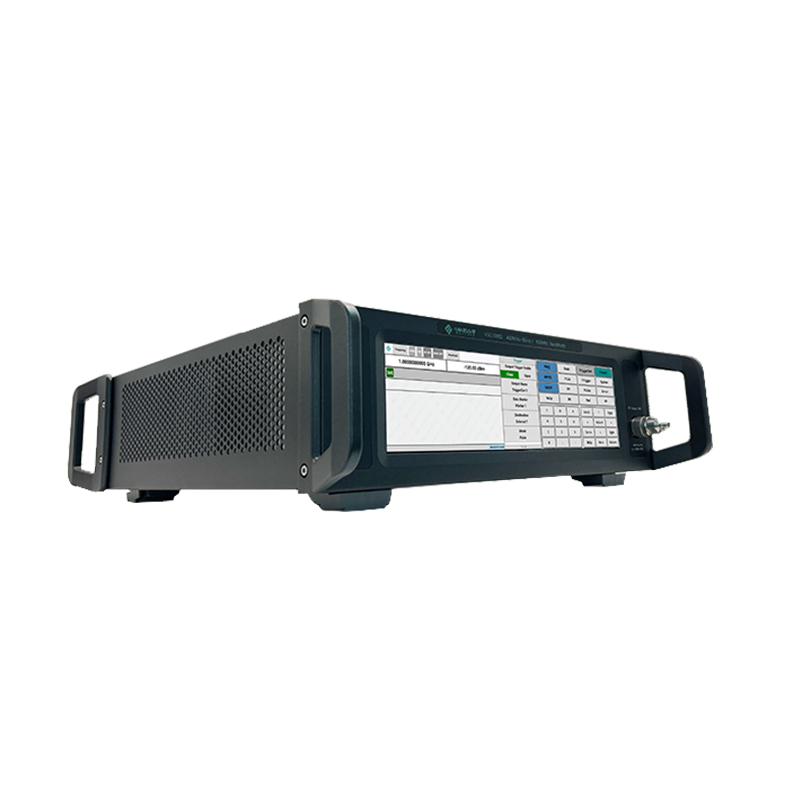

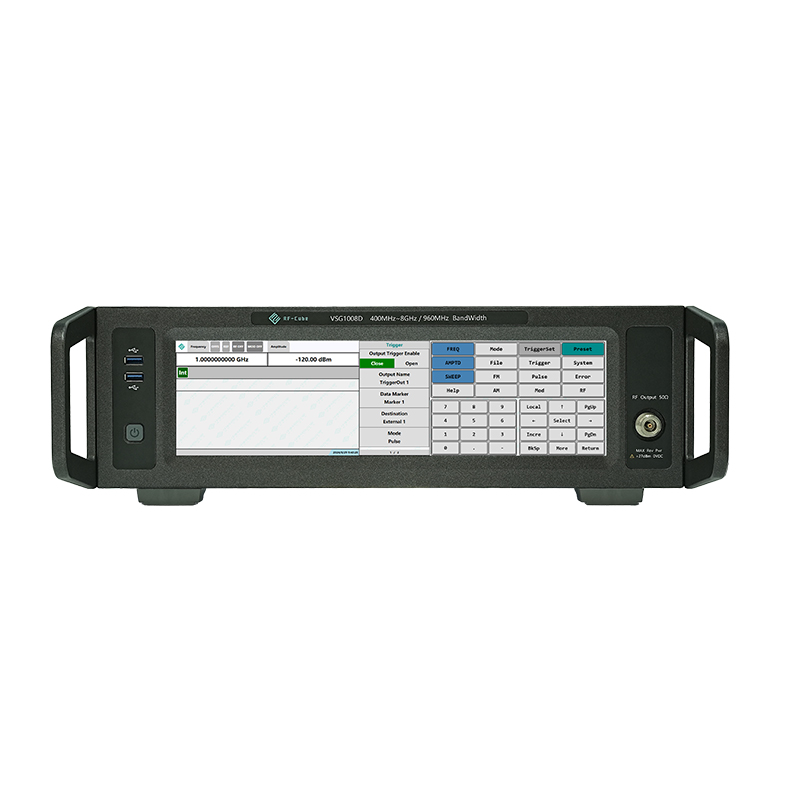

G1008D Vector Signal Generator

G1008D is a desktop vector signal generator adopting a zero-IF architecture, ideal for users requiring wide bandwidth vector testing. It supports mainstream waveform editing software formats (wfm, aiq, bin, mat, csv, etc.), compatible with users' existing software to reduce overall procurement costs. Equipped with a full touchscreen design and remote control support via SCPI protocol.

400-960-9313

Apply for trial/cons

Typical Parameters

• Modulation bandwidth 960MHz, covering all Sub-6GHz requirements

• Up to 2.4GHz internal baseband single-channel clock sampling rate

• Outstanding phase noise: -137dBc/Hz@10kHz (carrier 1GHz)

• Exceptional EVM:

≤-50dB (typ) for 802.11ax (CF 5.8G, 80MHz, 256QAM, MCS9)

• Superior harmonic/spurious suppression

• Supports mainstream waveform editing software to save software costs

• High-precision trigger and time synchronization capability

• Full touchscreen design
